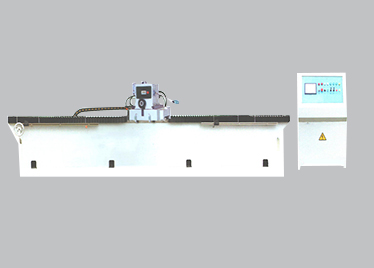

全自动精密磨刀机（双磨头）

全自动精密磨刀机（双磨头）

◆◆ 功能特点（Functional characteristics）

●龙门式机身，采用优良钢板焊接，高温回火，消除内应力,机身强度高，刚性好。

Gantry fuselage is welded with excellent steel plate, tempered at high temperature, eliminating internal stress, high strength and good rigidity.

●专用磨头电机，可调轴向间隙，传动平稳，磨削量大，寿命长，精度高。

Special grinding head motor, adjustable axial clearance, smooth transmission, large grinding volume, long service life and high accuracy.

●电磁吸盘刀台，具有退磁功能，定位可靠，操作方便，工作效益高。

The electromagnetic chuck cutter table has demagnetization function, reliable positioning, convenient operation and high efficiency.

●蜗轮蜗杆传动，无噪声，具有自锁性，工作台可调0-土90°。

Worm wheel and worm drive, noise-free, self-locking, worktable adjustable 0-soil 90 degrees.

●蜗轮减速机齿条传动，传动比准确，传动效力高(蜗轮箱终身无需加油)。

The rack drive of worm gear reducer has accurate transmission ratio and high transmission efficiency (the worm gear box needs no refueling for life).

●进口变频器调速，任意调整左右行程速度和磨头电机转速。

Imported frequency converter speed regulation, arbitrary adjustment of left and right stroke speed and grinding head motor speed.

●进口直线导轨，滚珠丝杆，高精度平滑运动，行程传动稳定。

Imported linear guide rail, ball screw, high precision smooth movement, travel transmission stability.

●集中加油装置，实现一次性集中加油，省时便捷。

The centralized refueling device realizes one-time centralized refueling and saves time and convenience.
